Rolling Shutter Operator - USA 1000G
By Shinsei Seiki - Japan Product
 |
| Shinsei Seiki USA 1000G - 3 Phase |
| Model | USA-1000G | |
|---|---|---|
| Voltage | Three-phase 400V | |
Drum Sprocket | Winding Capacity(kg) | 1100(10787N) |
| Min. Fall Load(kg) | 21(206N) | |
| Winding Drum Speed(r.p.m) | 4.2/5.0 | |
| Output Shaft | Torque(N・m) | 328 |
| Min. Fall Torque(N・m) | 4.9 | |
| Speed(r.p.m) | 17.6/20.9 | |
| Motor | Output(kW) | 0.75 |
| Speed(r.p.m) | 1410/1670 | |
| Full-load Current(A) | 1.6/1.7 | |
| Time Rating(Minute) | 10 | |
| Max. Range of Limit Switch(Turns) | 385(in Output Shaft) | |
| Sprocket(Output side/Drum side) | #80-T10/#80-T50 | |
| Roller Chain | #80 | |
| Operator Weight(kg) | 49 | |
.jpeg) |

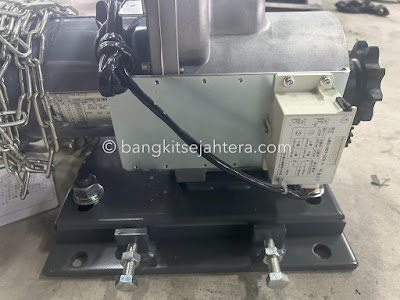

| Foto dari samping |
 |
| Foto dari atas |
 |
| Foto dari samping |
 |
| Stock Unit |
PDF Operation Manual Download: Click Here
